Pigging Systems
Recover up to 95% of residual product from your pipelines. Reduce waste, speed up changeovers and cut cleaning costs.
95% product recovery
Recover nearly all product from pipelines, minimizing waste and losses.
Faster changeovers
Reduce changeover time between products, colors or flavors by up to 80%.
Less water & chemicals
Reduce CIP water and chemical consumption with mechanical product removal.
Simple operation
Automatic pig launching and receiving with minimal operator intervention.
What is pigging?
Pigging uses a flexible projectile (the "pig") to push residual product through a pipeline. The pig fits tightly against the pipe wall, scraping the surface clean and pushing the product ahead of it.
In a typical transfer line, 5-15% of the product remains in the pipe after pumping stops. Without pigging, this product is lost to waste or flushed away with cleaning water.
Trinox / Gulbinat pigging systems recover up to 95% of this residual product, delivering it to the destination vessel or packaging line. The recovered product is saleable, not waste.
How pigging works
The pig is launched from a sending station at the start of the pipeline. Compressed air or liquid propellant pushes the pig through the line, with the product ahead of it.
At the end of the line, the pig enters a receiving station where it's captured and held ready for the return journey. The recovered product continues to the destination.
Pigging sequence:
- Product transfer completes
- Pig launched from sending station
- Pig pushes residual product through line
- Product delivered to destination
- Pig captured in receiving station
- Line ready for cleaning or next batch
Applications
Pigging systems are used wherever valuable product would otherwise be lost in transfer lines.
Product Recovery
Recover residual product from pipelines
Line Clearing
Clear lines between batches
Color Changes
Fast changeover between colors
Flavor Changes
Quick flavor transitions
Batch Separation
Prevent batch cross-contamination
Line Cleaning
Push cleaning solution through lines
The economics of pigging
Pigging systems typically pay for themselves within 6-18 months through product recovery and reduced cleaning costs.
95%
Product recovery
80%
Faster changeovers
50%
Less CIP water
12mo
Typical payback
Industries served
Trinox / Gulbinat pigging systems serve any industry processing viscous or valuable liquids.
Food & Beverage
Sauces, dairy, beverages
Cosmetics
Creams, lotions, shampoos
Pharmaceutical
Ointments, suspensions
Chemical
Paints, adhesives, coatings
System components

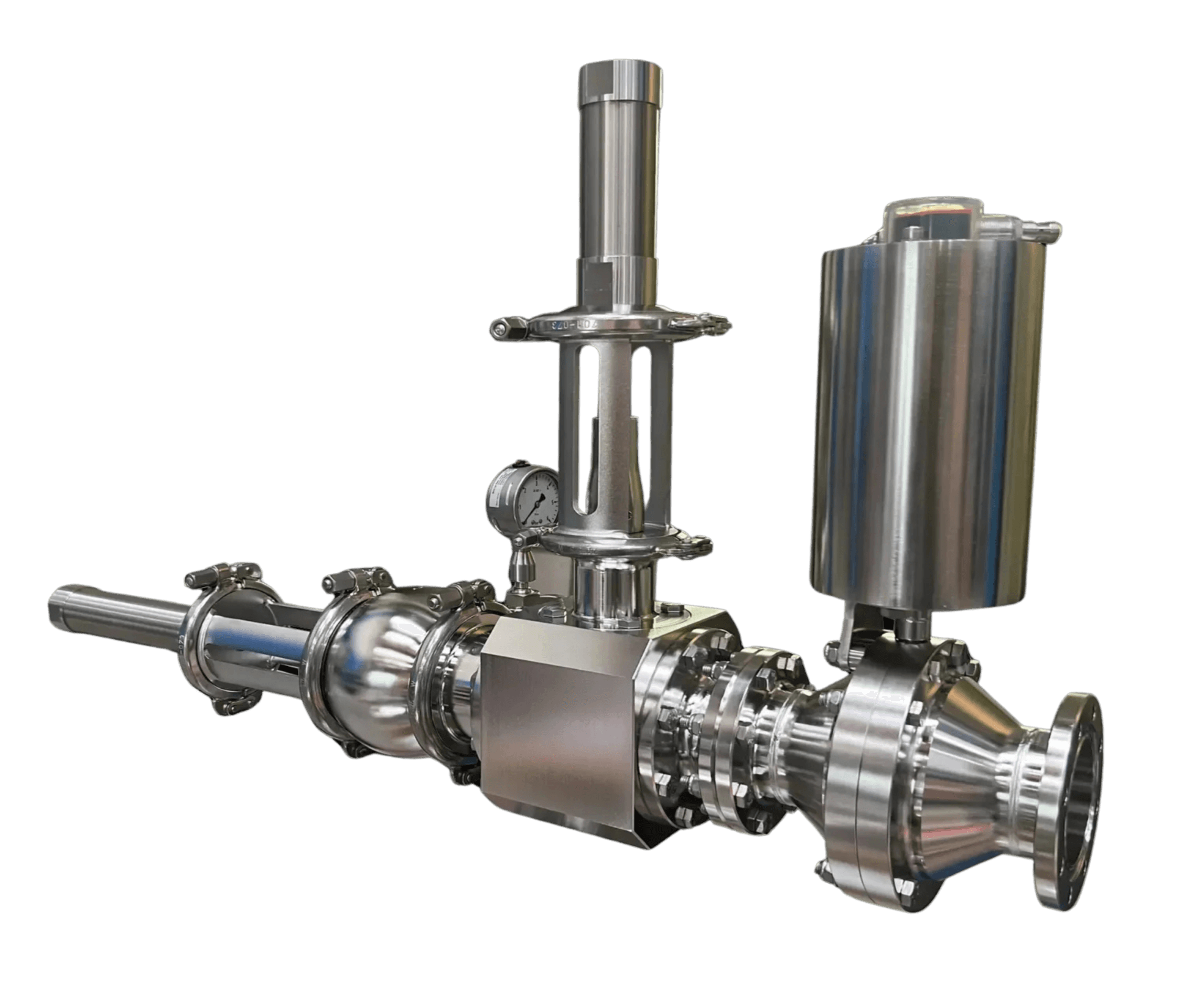

A complete Trinox / Gulbinat pigging system includes pig launching and receiving stations, piggable valves, and control equipment. All components are designed for hygienic applications with CIP/SIP capability.
System includes:
- Pig launching station
- Pig receiving station
- Piggable ball valves
- Propellant supply (air or liquid)
- Control panel and sensors
Frequently asked questions
Pigging uses a flexible projectile (the 'pig') to push residual product through a pipeline. The pig fits tightly against the pipe wall, scraping it clean and pushing product ahead to the destination rather than wasting it.
Need a pigging system?
Contact us for technical consultation, ROI analysis or a quote. We'll help you design the right system for your application.
